Name: 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-MFLXXXX-7XX-BCPX-DGBX3
Availability: InStock

Nhà Sản phẩm Đèn LED biển

50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Thâm Quyến, Trung Quốc
Hàng hiệu:	DUALRAYS/OEM/OEM/OBM Optioanal
Chứng nhận:	CE,RoHS,TUV/GS,LM79,LM80
Số mô hình:	DR-MFLXXXX-7XX-BCPX-DGBX3
Tài liệu:	DUALRAYS Warrantee Agreemen...H2.pdf

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 CÁI
Giá bán:	Please contact us for details.
chi tiết đóng gói:	Gói mạng, gói DUALRAYS/ODM/OEM/OBM tùy chọn
Thời gian giao hàng:	50000 chiếc / tháng
Điều khoản thanh toán:	L/C,T/T,Western Union,Paypal

Tiếp xúc

Chi tiết sản phẩm

Điện áp đầu vào:	AC100-240V	Hiệu suất năng lượng:	95%
Nguồn điện khẩn cấp:	5W	Vật liệu:	Vỏ AL đúc khuôn cấp MarIne áp suất cao để đạt được sơn tĩnh điện cấp độ WF2, dẫn nhiệt tuyệt vời và
Xếp hạng IP:	IP66	Tuổi thọ:	100.000 giờ
Quang học:	50-70W/Mô-đun * 30°/60°/90°/120°Đối xứng, 49* 21°/54* 40°/90* 110°/70* 140°/80* 140°/136* 78° Không	Dấu ngoặc:	Giá đỡ và phần cứng bằng thép Stainess 316 để chống ăn mòn tối đa
Làm nổi bật:	50W marine flood light , stainless steel 316 marine light , corrosion resistant marine LED light

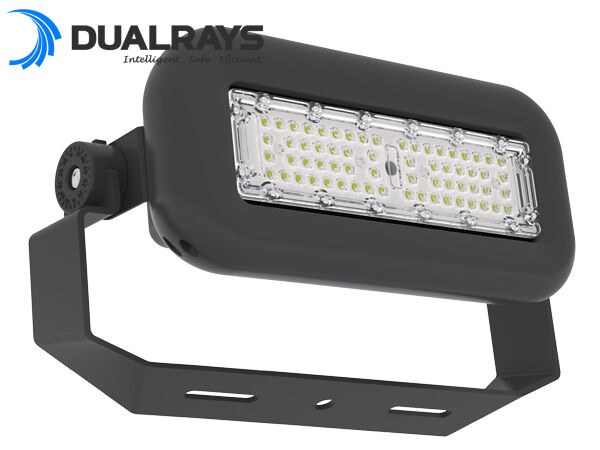

MFL4 LED Marine Flood Light - 50W

Versatile and rugged floodlight designed for marine, port, and industrial applications where saltwater exposure demands enhanced corrosion protection.

Product Overview

The MFL4 LED Marine Flood Light combines robustness, long outdoor service life, and excellent energy-saving performance. It provides high consistency and high-CRI white light, making it the ideal replacement for traditional HID 100/300/500/1000W luminaires.

The fixture includes customized SS316 stainless steel mounting brackets for quick and easy installation and is built with stainless steel hardware for maximum corrosion resistance. Ready for smart functions such as DMX512 or wireless Zigbee control, offering intelligent lighting solutions.

Key Features

High Brightness SAN'AN LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs, Meanwell XLG / PHILIPS Driver Optional
Marine Grade AL Housing: High pressure marine graded die-cast AL housing to achieve WF2 level, Precision Integrated Die-casting ADC12 AL, Excellent Thermal Conductivity
Stainless Steel 316 Hardware: Stainless steel bracket and hardware for maximum corrosion resistance
IP66 / IK10 Protection
Multiple Optical Options: 30°/60°/90°/120° Symmetric, 49*21°/54*40°/90*110°/70*140°/80*140°/143*50/136*78° / 143*50° Asymmetric, 45° polarized, 60° polarized (developing) optic Optional

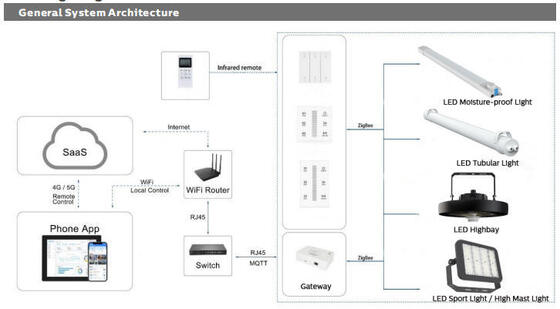

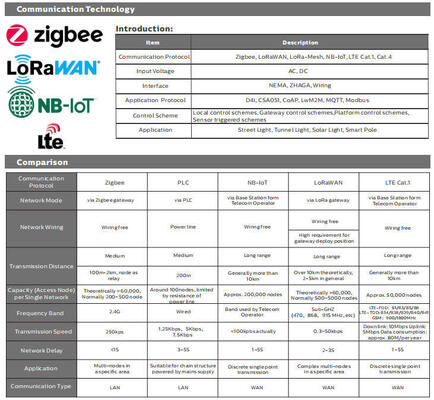

Various Intelligent Control: 1-10V, DALI, DMX512, Zigbee for Option
No UV or IR and completely mercury free
L80/B10 @ 100,000 hours
Customized supported for special projects

Configuration Options

Driver: Meanwell/SOSEN/PHILIPS, DURALYS own-developed driver, durable and compact
LEDs: LUMILEDS/SAN'AN LEDs Optional
Efficiency: 130LPW/160LPW Optional
Controls and Dimming: 1-10V, DALI, DMX512, Zigbee for Option

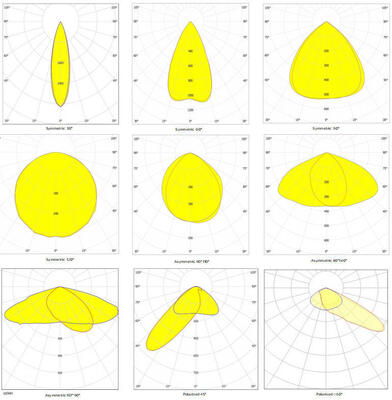

Optical Lens: Multiple symmetric and asymmetric beam angles available

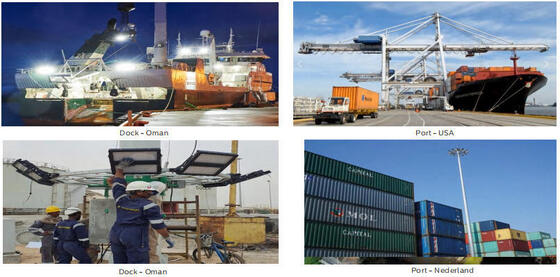

Applications

Fishing vessels
Maritime vessel decks
Overhead cranes & Gantry cranes
Offshore drilling platforms
High mast area lighting
Harbor facilities

General System Specifications

Housing Material	High pressure die-cast ADC12 aluminium according to UNE EN 1706 standard powder coated
Housing Color	Metallic Black (RAL9017), Other colors optional
Sealing Gaskets	Silicone foam
LEDs Thermal Dissipation	Through finless ADC12 AL luminaire body, passive convection dissipation
Brackets	SS316 Marine Grade U Shape Bracket with 360° Rotatable
Recommended Mounted Height	5 - 20 meters
Maintenance	Easy, opening with screw driver, modular concept for easy component replacement
Driver	Constant current adjustable and programmable driver embedded in galvanised driver box
IP Rating	IP66
IK Rating	IK10
Protective Class	Class I
Cable Entry	H05RN-F 31.5mm² \| H05RN-F 51.5mm² (Max section 4mm²)
Surge Voltage Resistance	CM: 10kV, DM: 6kV
SPD (optional)	10kV-10kA, type II, with LED signal and thermo fuse
Installation	Bracket installation, suitable for ground, wall, high mast and other solid planes
Smart Function	0-10V, PWM, Time control, DMX, Zigbee, DALI

Electrical System Specifications

Main Voltage	100~277VAC/ 50~60Hz \| 277~480VAC/ 50~60Hz
Power Factor (PF)	≥0.95
Total Harmonic Distortion (THD)	＜10%
Output Type	Non-SELV (non-isolated)
Flicker Factor	<1%
Driver efficacy	>90%
Energy class	A++ IPEA>1.15

Photometry System Specifications

LEDs	SMD3030 / SMD5050 Optional
CCT	Single CCT (3000K \| 4000K \| 5000K \| 5700K \| 6500K)
CRI	>70Ra for standard (>80Ra for higher CRI available)
Photobiological Safety	RG0 (exempt of risk)
Upward light output ratio	ULOR 0%
Downward light output ratio	DLOR 100%
Glare index	Between D5 and D6
Luminous intensity category	Between G4 and G6
Luminous flux CIE nº3	>95%
SDCM	＜6
Beam Angle	Multiple symmetric and asymmetric options available
Average Luminaire Useful Lifetime	100,000 hours (L80B10)
Lumen Maintenance at e.o.l.	>70%
Luminous Efficacy	130LPW (PROLine) \| 160LPW (PRIMELine) Optional

Luminous Output Specifications

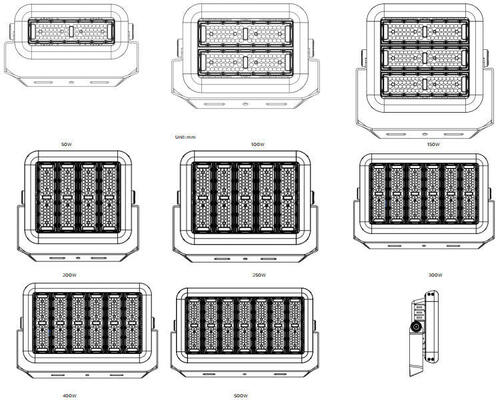

Rated Power	50W	100W	150W	200W	300W	400W	500W
Lumens Delivered @ 5000K, CRI>70 (PRO)	6,500lm	13,000lm	19,500lm	27,000lm	39,000lm	52,000lm	65,000lm
Lumens Delivered @ 5000K, CRI>70 (PRIME)	8,000lm	16,000lm	24,000lm	32,000lm	48,000lm	64,000lm	80,000lm

Operation Conditions

Operation Temperature / Humidity	-40~ +50℃ (-40°F ~ 122°F) / 10~90% RH, not condensed
Storage Temperature / Humidity	-40~ +80℃ (-40°F ~ 176°F) / 10~90% RH, not condensed
Average LED Useful Time L80B10	≥100,000H
Rated Nominal Lifetime (Tp <70℃)	Up to 100,000H
Driver MTBF	500,000H, MIL-HDBK-217F(25℃)
Vibration Resistant	10~500Hz, 5G 12min / 1cycle, period for 72min. Each along X,Y,Z axes
Acoustic Noise	＜25dB (30cm distance, Normal operation)
Guarantee	5 Years (Extensible up to 7 years)

Certifications

Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium
Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471
EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384
Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11

Important Notes

Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRI>70
Lighting beam, light intensity distribution and light efficiency examined in accordance with EN ISO 17025:2005 norm for EN13032 norm series and LM-79 norm
Up-to-date product info and general warranty terms available on www.DUALRAYS.com
Detailed information on luminous fluxes and powers for individual indexes indicated on product data sheet
Values may be subject to change due to LED binning
Parameters given for Ta=25°C, based on 5000K/70Ra
Power tolerance with ZHAGA version or power supply D4i/SR: ±10%

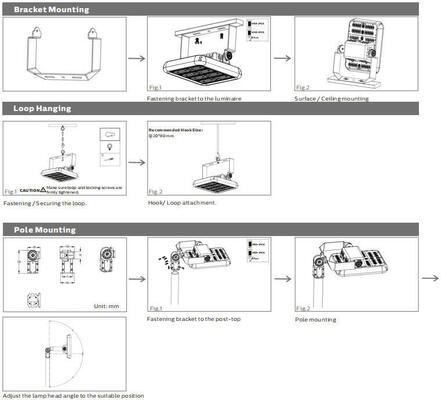

Installation Instructions

Turn off the power, connect AC wire. For dimmable driver models:

Compatible with 0-10V dimming
Connect wires as per wiring diagram

Packaging Specifications

Power/W	Inner Box	Outer Carton	QTY/CTN	Unit N.W	G.W/Carton
50	260x150x425mm	635x540x445mm	8PCS	3.6Kg	32.8Kg
100	300x150x425mm	635x620x445mm	8PCS	5.8Kg	51.6Kg
150	405x150x425mm	635x420x445mm	4PCS	7.4Kg	33.5Kg
200	415x150x410mm	635x430x430mm	4PCS	9.3Kg	42.7Kg
250	415x150x485mm	415x150x485mm	1PCS	13.9Kg	16.3Kg
300	415x150x560mm	415x150x560mm	1PCS	16.3Kg	19.5Kg
400	415x150x560mm	415x150x560mm	1PCS	19.5Kg	22.8Kg
500	415x150x635mm	415x150x635mm	1PCS	22.8Kg	25.5Kg

Safety Instructions

To avoid electric shock, ensure power supply is turned off before installation
Install and operate by qualified electrician in accordance with National Electrical Code and local codes
Unpack and examine lamp carefully, report any damage and save packing materials
If the lamp is damaged, do not use it!

Manufacturer Statement

DUALRAYS LED Marine Flood Light series products are designed for marine and industrial applications. DUALRAYS provides full warranty for products used in specified environments. Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. requires official confirmation from the manufacturer. Misapplication voids warranty policy.

Company Advantages

Professional Team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system
Reliable Brand: Stable long-term cooperation with Europe customers, warehouse in Netherlands for better service
DIALux Simulation: Our engineering team provides simulation services based on your application parameters
Quality Standards: All LED luminaries comply with CE, RoHS standards. TUV, ENEC, VDE, SAA, C-Tick, LM79, LM80 listed for leading products

Shipping Information

For small orders: Express shipping recommended. For bulk orders: Sea or train shipping (Europe destination) recommended but takes longer. For urgent orders: Air freight to airport plus our shipping partner delivery to your door.

Frequently Asked Questions

Q1: What is the warranty for the MFL4 LED Marine Flood Light?

5 years warranty, extendable to 7 years. If any quality problems occur on our side during this period, we cover shipping costs and replacement.

Q2: What payment methods do you accept?

Western Union, Paypal, T/T, L/C. Standard payment for bulk orders: 30% T/T in advance, balance 70% before shipment.

Q3: What is CRI?

CRI (Color Rendering Index) indicates how accurately colors appear under the light. Higher CRI provides better color representation.

Q4: Can I buy only the housing separately?

We only supply complete luminaire fixtures, but SKD/CKD (Semi-Knocked Down/Completely Knocked Down) options are available.

Q5: What are the shipping costs to my country?

Small orders: Express shipping. Bulk orders: Sea or train shipping (to Europe). Urgent orders: Air freight to airport plus local delivery.

Q6: Can we get marketing support?

Yes, please share your market requirements and we'll provide helpful suggestions and solutions.

Q7: What dimming functions are available?

DALI, PIR, 1-10V dimming available. Built-in daylight sensor for intelligent control optional.

Q8: What are the applications of your MFL4 LED Marine Flood Light?

Fishing vessels, maritime vessel decks, overhead cranes, gantry cranes, offshore drilling platforms, high mast area lighting, harbor facilities.

Contact Information

Welcome to contact us for more information. Visit our official website www.DUALRAYS.com or email us at info@DUALRAYS.com for the latest information and support.

About DUALRAYS

Thank you for choosing DUALRAYS LED luminaires. We prioritize quality in all our product designs and packaging. All products are professionally tested and comply with strict quality standards. Our professional after-sales service team supports our customers throughout the guarantee period. If any quality problems occur during the guarantee period, contact us immediately. When confirmed by our QC Department, we will exchange or maintain products free of charge.

Shenzhen Dualrays Optoelectronics Co., LIMITED serves you with heart and soul!
